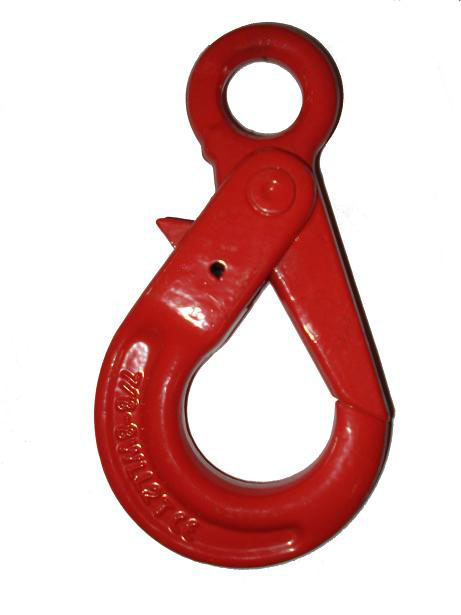

起重吊钩/吊环系列 眼型安全钩
眼型安全钩
|

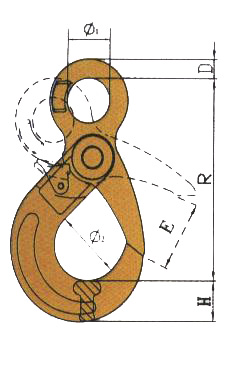

规格 SIZE |
工作载荷 WLL.T |
Ø1 mm |
R mm |
D mm |
Ø2 mm |
H mm |
E mm |
自重 WEIGHT.KG |
|
6-8 |
1.2 |
22 |
110 |
10.5 |
35 |
22 |
28 |
0.5 |
|
7/8-8 |
2 |
25 |
134 |
12 |
46 |
24 |
34 |
0.8 |
|
10-8 |
3.2 |
32 |
170 |
15 |
55 |
28 |
45 |
1.5 |
|
13-8 |
5.4 |
40.5 |
206 |
20 |
69 |
40 |
54 |
3.2 |
|
16-8 |
8.2 |
56 |
249 |
22 |
84 |
51 |
63 |
6.1 |
|
20-8 |
12.5 |
64.5 |
273 |
27 |
100 |
56 |
81 |
7.5 |
|
22-8 |
15 |
70 |
320 |
30 |
99 |
67 |
82 |
13.4 |
|
26-8 |
21.2 |
80 |
362 |
34 |
110 |
75.5 |
114.5 |
18.5 |
|
32-8 |
31.5 |
105 |
472 |
45 |
147 |
96 |
168 |
44.5 |
